UltraSoundGate Player 116H
part # 70111, 70112
Ultrasound playback interface with integrated D/A converter, power amplifier, USB 2.0 interface, playback software and transport case. The UltraSoundGate Player 116H can be bus-powered in order to avoid an external power supply. For maximum sound levels, an external power supply (12…36VDC) can be attached. The trigger input (TRG) allows to start the playback by an external switch or TTL signal. The digital output (DOUT) can be used for instance to synchronize the playback with physiological data recording systems.

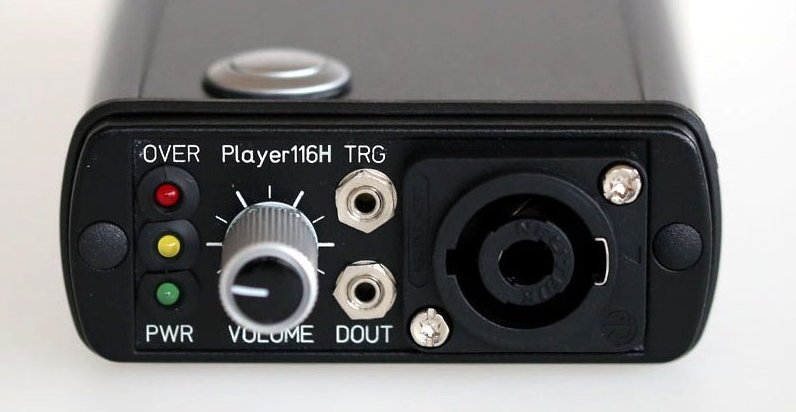

UltraSoundGate Player 116H, front view
UltraSoundGate Player 116H, back view
| Number of channels | 1 |
| Resolution | 8 or 16 bit |
| Sample rate [kHz] | 2000 The bundled RECORDER USGH software provides a real-time oversampling option that allows to play .wav files with any sample rate below 2 MHz. |
| Output power | 1.5 W (USB bus-powered) or 10 W (with external 36 V power supply) |
| DC bias voltage for electrostatic speakers | 200 V |
| Frequency range | 1 … 180 kHz |
| Slew rate | 8 V/µsec |
| Overload indicator (red LED) | yes |
| Volume adjustment potentiometer | yes |
| Trigger button | yes (HID device class compliant game controller button) |
| Speaker output connector | 4-pole speakON connector |
| Other inputs/outputs | external trigger (TTL-compatible, 2.5 mm TS socket), digital output (TTL-compatible, 2.5 mm TS socket), LINE output (cinch socket) |
| Computer interface | USB 1.1, isochronous full-speed data transfer mode |
| Physical USB connection | B-type USB socket |
| Supply current | 400 mA (drawn from USB) or up to 1A from an external 12…36 V supply |
| Housing | compact aluminium enclosure |
| Physical dimensions (W/H/D) | 85 x 35 x 190 mm |
| Weight | 350 g |
| Included software | Avisoft-RECORDER USGH |
| System requirements | PC with at least an Intel Atom at 1 GHz, running Windows Vista/7/8/8.1/10/11 |
Functional principle of the UltraSoundGate Player
Recommended accessories for the UltraSoundGate Player
- Dynamic speaker Vifa (#60108) or electrostatic speaker ESS 16 (#60104)
- An external AC power adaptor (part # 70106) is recommended when high playback sound levels are required.
