UltraSoundGate Player BL Light
part # 70113
UltraSoundGate Player BL Light is a cost-effective ultrasound playback unit for luring bats. The system consists of an USB computer interface, D/A converter, power amplifier, speaker, tripod mount and playback software. It is entirely powered from the USB interface of the computer (bus-powered), which means that no additional batteries are required. An attachable eye allows to hang the unit on a mist net pole or a tree.
The comfortable playlist feature of the accompanying RECORDER USGH software allows to play both original, noise-reduced or fully synthesized bat calls in random order and at random intervals. A growing collection of European bat sounds that are suited for this purpose is available at www.batcalls.com.
UltraSoundGate Player BL Light, front view
UltraSoundGate Player BL Light, mounted on a tripod
| Number of channels | 1 |
| Resolution | 8 or 16 bit |
| Sample rates [kHz] | 1000 (8 bit only), 750(8 bit only), 500, 384, 375, 300, 250, 214, 192, 187.5, 166.6, 150, 125, 100. The bundled RECORDER USGH software provides a real-time oversampling option that allows to play .wav files with any sample rate below 500 kHz (including time-expanded recordings). |
| Output power | 1.5 W |
| Max sound pressure level | 100 dBSPL @ 10 cm (= 80 dBSPL @ 1 m) |
| Frequency range | 1 … 125 kHz |
| Amplifier slew rate | 8 V/µsec |
| Overload indicator (red LED) | no |
| Volume adjustment potentiometer | no |
| Trigger button | no |
| Speaker output connector | n/a |
| Physical USB connection | B-type USB socket (or LEMO 1B on request) |
| Supply current | 500 mA (drawn from the USB) |
| Physical dimensions (W/H/D) | 90 x 56 x 116 mm |
| Weight | 360 g |
| Included software | Avisoft-RECORDER USGH |
| System requirements | PC with at least an Intel Atom at 1 GHz, running Windows Vista/7/8/8.1/10/11 |

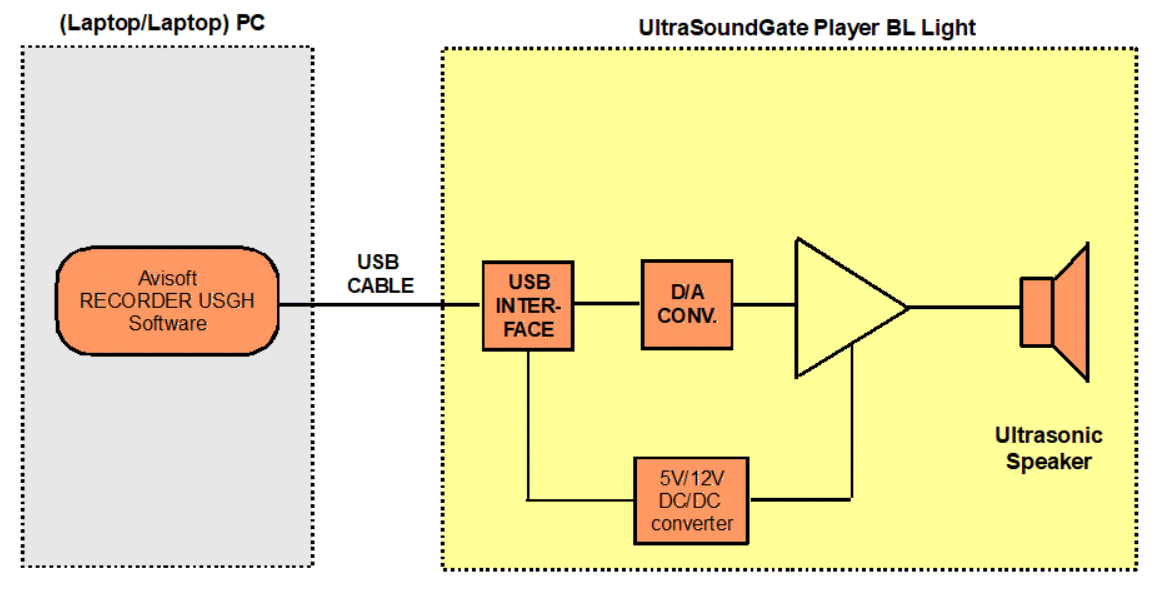

Functional principle of the UltraSoundGate Player BL Light
Frequency response of the built-in speaker
CAUTION
Note that playing back (ultra)sounds in the field for attracting wild animals usually requires an official license or permit issued by the local nature conservation authorities!
Due to the potentailly very high sound levels at close distances, keep away from the speaker or wear a hearing protector during playback!
